床垫弹簧自动卷绕机
LD-100H
机械结构简单

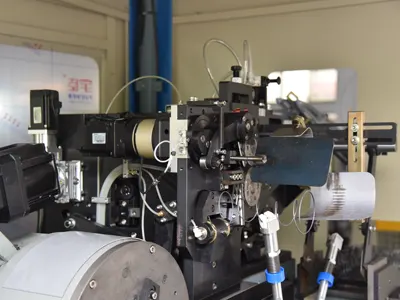

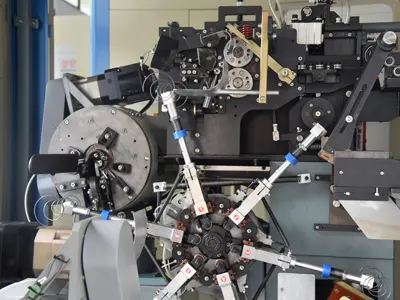

专利设计数控五轴联动绕簧机头

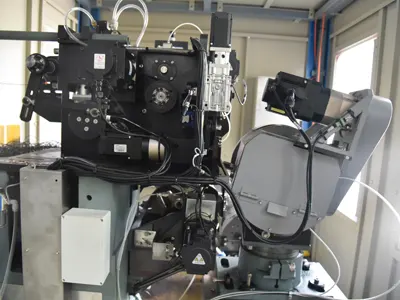

机械手独立伺服系统驱动
产品参数
| 机器型号 | LD-100H |
| Model | LD-100H |
| 弹簧类型 | 双锥打结型 |
| Typ of springs Bonnell | Bonnell |
| 生产效率 | 95-10 psc/ minute |
| erformance | 95-100psc/ minute |
| 钢丝直径 | 1.9-2.4mm |
| Spring Wire Gauge | 1.9-2.4mm |
| 弹簧口径 | 62-95mm |
| spring | 62-95mm |
| 弹簧高度 | 80-190mm |
| Spring Height | 80-190mm |
| 弹簧圈数 | 4-7turns |
| Convolutions | 4-7turns |
| 主功率 | 7.9KW |
| Main Diver Power | 7.9KW |
| 线架功率 | 4kw |
| Swift Frame Pwoer | 4Kw |
| 热处理功率 | 17KVA |
| Heat Treatment | 17KVA |
| 电源要求 | 3*AC380/50-60Hz |
| Power Requirements | 3*AC380/50-60Hz |
| 重量 | 2,650KG |
| Weight | 2,650KG |
